H Type Automatic Chicken Layer Cage
H-Type Automatic Chicken Layer Cage is a high-density, fully automated poultry housing system designed for large-scale commercial egg production. The system utilizes a vertical H-frame structure spanning 4 to 8 tiers, maximizing land utilization and labor efficiency. Equipped with complete automation for feeding, drinking, egg collection, manure removal, and climate control, it is the premier choice for modern poultry farms housing over 50,000 birds. Its enclosed design enables precise climate control and biosecurity management.
- Tiers
- 3 / 4 / 6 / 8
- Birds per set
- 96–240
- Suits
- 10,000 birds and above
Highlights

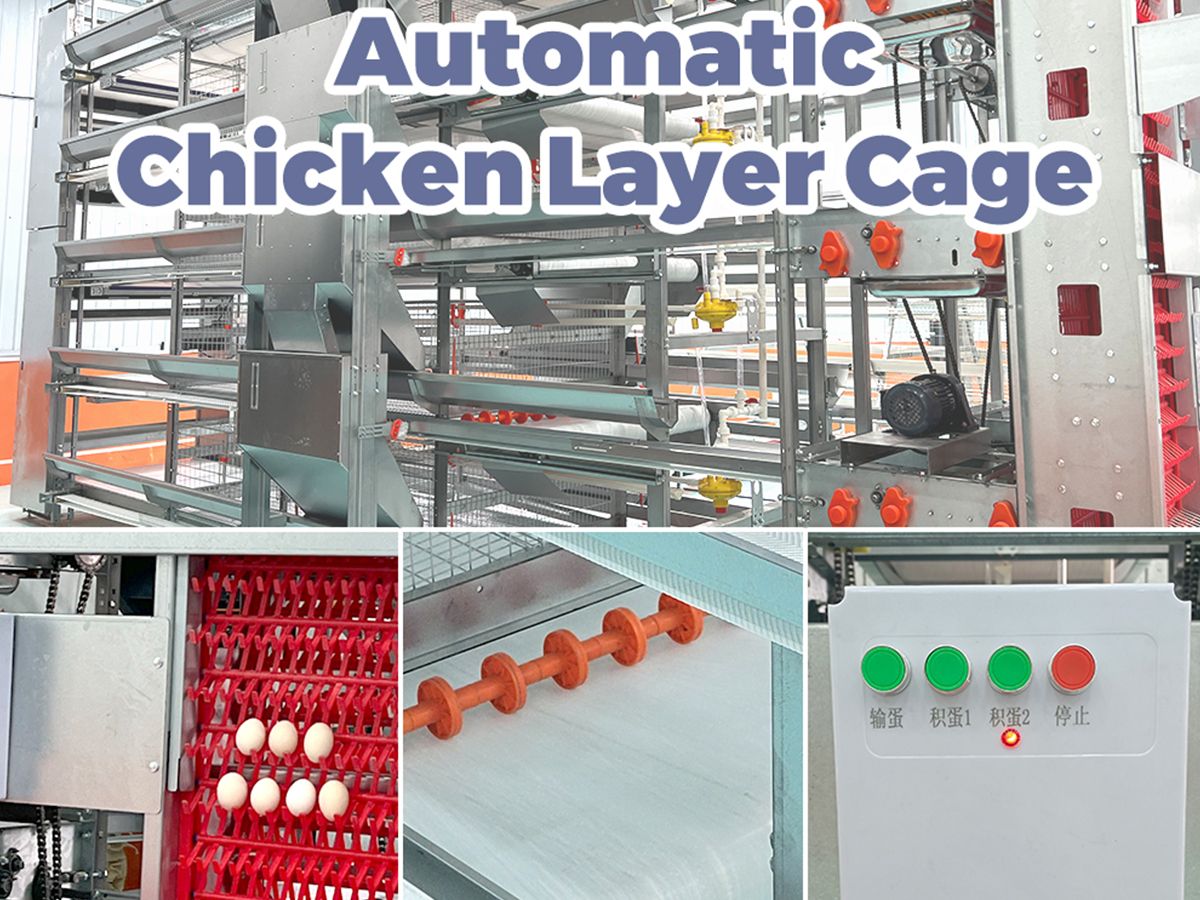

- Centralized control panel for farm management.
- Hot-dipped galvanized frame for 20+ years lifespan.
- Low labor requirement — one worker can manage over 100,000 birds.
- Uniform feed distribution and egg collection.
Applications
- Large-scale commercial egg production (over 50,000 birds).
- Modern automated poultry farms.

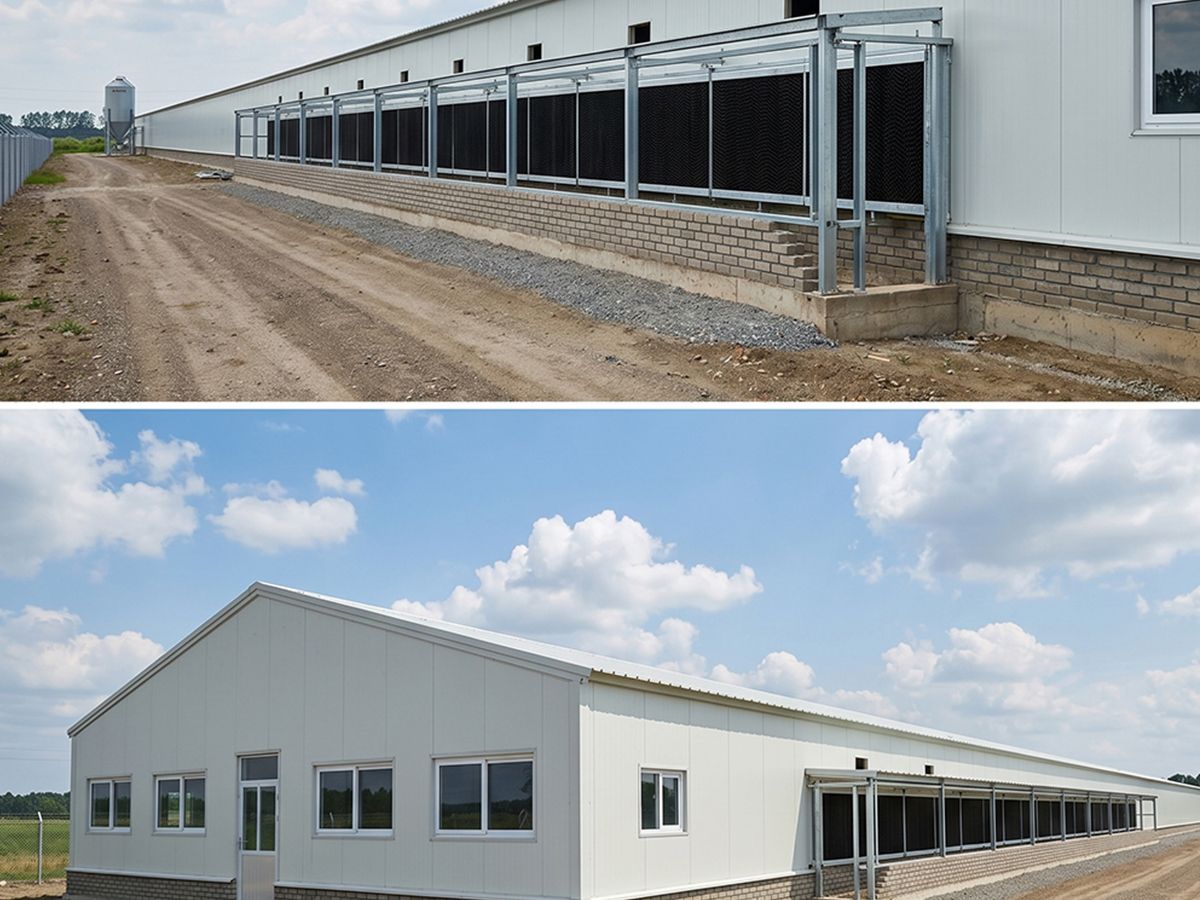

- Climate-controlled layer houses.
- High-density urban and peri-urban poultry farming.
- Corporate and industrial poultry enterprises.
Technical Specifications
H-Type Parameters
| Item | Specification |
|---|---|
| Type | H-Type (H-Frame / Vertical) |
| Tiers | 4, 5, 6, or 8 tiers |
| Capacity per set | 128 – 256 birds/set (4 birds/cell) |
| Cell size (W×D×H) | 500 × 550 × 450 mm |
| Set size | 2250 × 550 × 1700 / 1900 / 2100 mm |
| Wire mesh material | Low carbon steel wire, Q235 |
| Wire diameter | Side 2.5–3.0 mm, bottom 3.0–3.5 mm |
| Surface treatment | Hot-dipped galvanized |
| System configuration | Automatic traveling hopper feeding system with silo; nipple drinking system with pressure regulators and medicator; centralized egg collection belt system; conveyor belt manure removal system with manure drying |
| Lifespan | 20–25 years |
