Turnkey solution
A 10,000 bird layer farm, start to finish
The size most first-time commercial farmers land on: big enough to supply a town daily, small enough to run with a family team. Here is the house, the equipment, the labour and the numbers behind it.
The configuration
What you actually receive
One 40HQ container, quoted as a single package. Nothing left to source locally except the building itself.
| Item | Specification |
|---|---|
| Cage system | Automatic H-type, 4 tiers, 128 birds / set |
| Sets required | 78 sets |
| House dimensions | 60 m × 8 m × 5 m |
| Rows | 2 rows × 39 sets |
| Feeding | PVC trough |
| Drinking | Nipple drinker + pressure reducing valve |
| Manure | PP fecal cleaning belt |
| Egg collection | Central conveyor to packing room |
| Ventilation | 6 × exhaust fan + cooling pad |
| Shipping | 1 × 40HQ container |

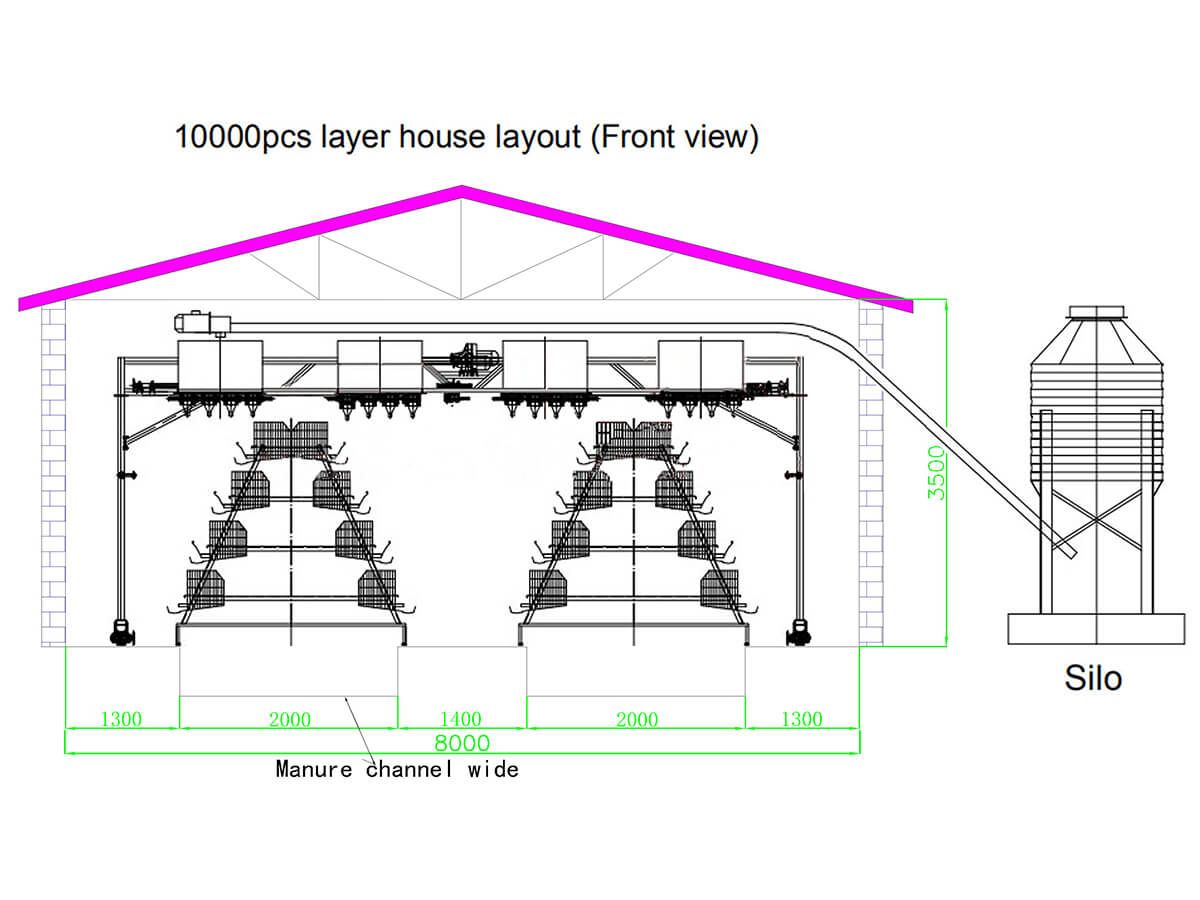

Indicative layout. Final design confirmed after we see your land dimensions.
Running the farm
Output, labour and feed at this scale
Figures are typical for a healthy commercial brown layer flock in a tropical climate and will move with breed, feed quality and management. Use them to plan, not to budget to the last unit.
Planning
Before you order
Land
A 60 × 8 m house needs about 0.4 acres on its own. Add the egg packing room, feed store, manure pad and a buffer from the boundary and one acre is comfortable. Leave room on one side — almost everyone who starts at 10,000 builds a second house within three years.
Power
Around 8 kW at peak. Where grid supply is unreliable, size the generator to carry the feeding and manure motors at minimum; egg collection can wait an hour, feed cannot.
Water
Two to two and a half cubic metres a day, so an overhead tank with at least a day of buffer. Filtration matters — nipple drinkers block on sediment faster than farmers expect.
Building
You build the shed locally; we supply everything inside it. We send the foundation and column layout with the CAD drawing so your contractor pours to the right positions the first time.
