H Type Manual Manure Removal Chicken Layer Cage

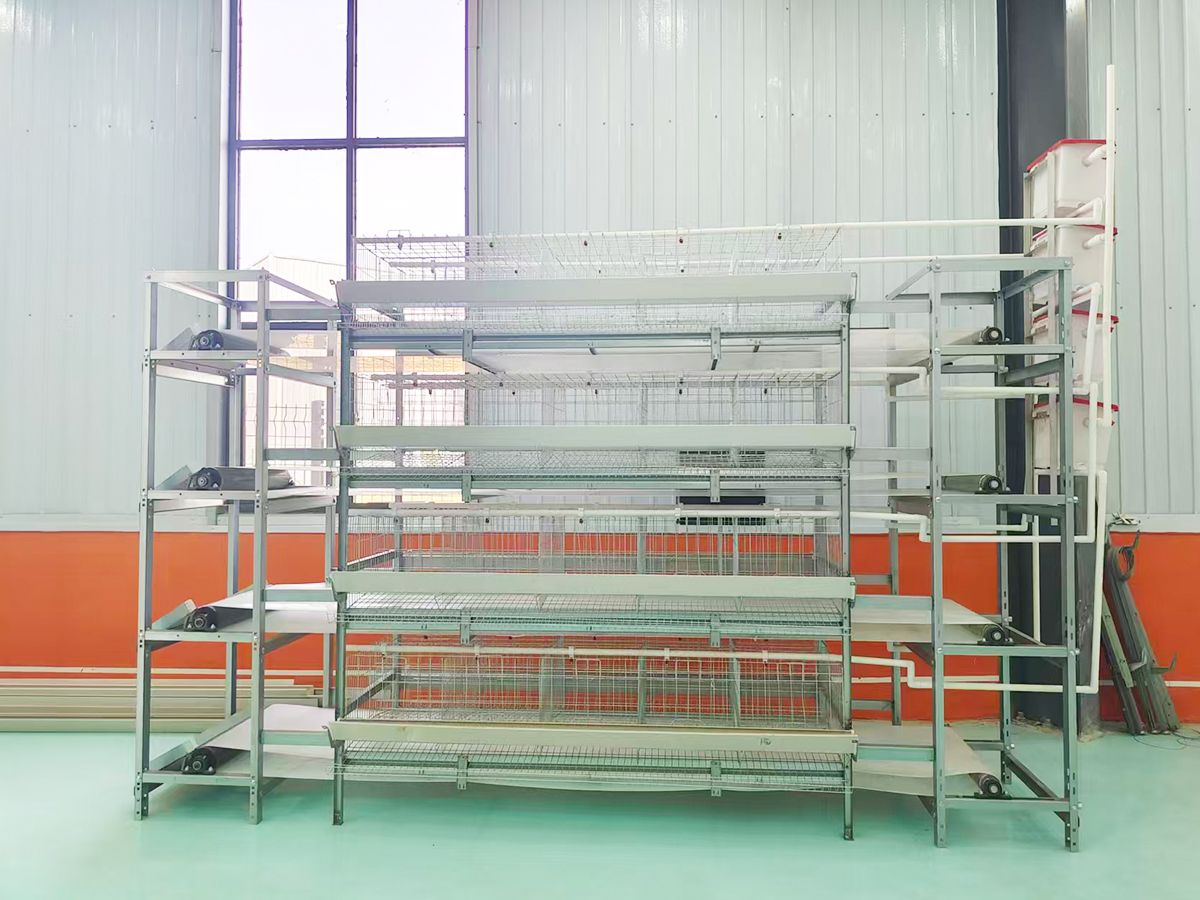

The H-Type Manual Manure Removal Layer Cage is an innovative housing solution designed for medium-scale poultry farms aiming to maximize stocking density without the high capital investment required for fully automated systems. Utilizing a vertical H-frame structure, this system significantly increases land utilization compared to traditional A-frame cages. By replacing expensive automated conveyor belts with specialized manure dropping boards between tiers, it allows for efficient manual cleaning. This system offers a perfect balance between high-capacity egg production, space optimization, and budget control.
- Tiers
- 3 / 4
- Manure handling
- Manual scraper
- Suits
- Small farms, unstable power
Highlights & Features
- High Density & Space Saving. The vertical H-frame design allows for a higher number of birds per square meter, maximizing farm capacity.
- Cost-Effective Investment. Eliminates the cost of motorized manure removal machinery, significantly lowering the initial setup expenditure.
- Labor Flexibility. Ideal for regions with accessible agricultural labor, reducing reliance on electricity and mechanical maintenance.

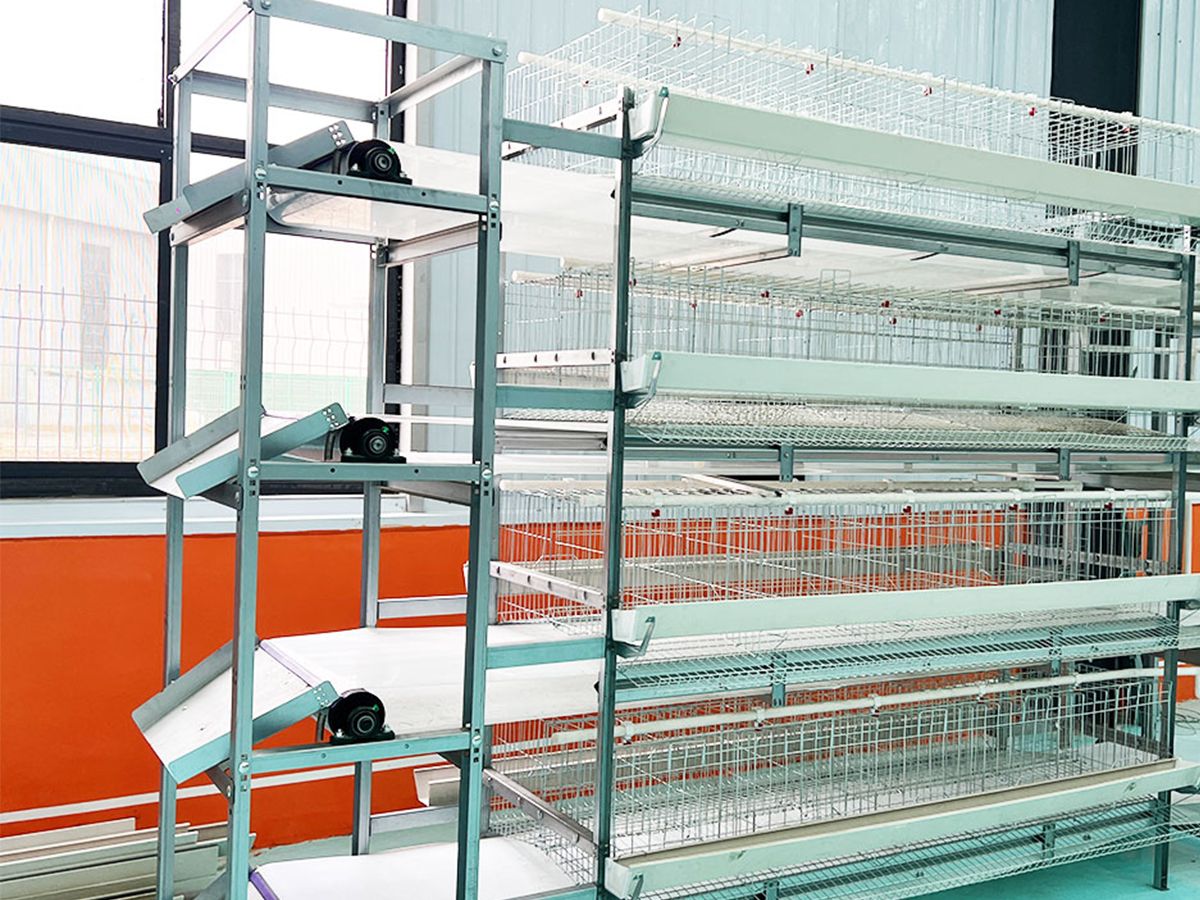

- Optimal Farm Hygiene. Equipped with smooth, durable dropping boards that make manual scraping quick and efficient, helping to maintain low ammonia levels and a healthy environment.
- Strict Zone Separation. Feed is placed securely in dedicated troughs, while eggs roll out onto completely separate bottom meshes, preventing contamination and egg damage.
Technical Specifications
H-Type Manual Manure Removal Parameters
| Item | Specification |
|---|---|
| Type | H-Type (Vertical Battery Cage) |
| Tiers | 3 or 4 tiers (optimized height for accessible manual cleaning and egg collection) |
| Capacity per set | 120 – 160 birds/set |
| Cell capacity | 4 to 5 birds per cell |
| Wire mesh material | High-quality low carbon steel wire (Q235) |
| Surface treatment | Hot-dipped galvanized (recommended for longevity) or cold galvanized |
| Watering system | Fully automatic nipple drinking system with PVC pipes and pressure regulators |
| Feeding system | Manual distribution into durable PVC or galvanized metal feed troughs |
| Egg collection | Manual collection from the bottom mesh roll-out extension |
| Manure removal | Manual scraping via installed dropping boards located beneath each tier |
