Home › Products › Other Poultry Equipment › Manure Removal System
Click to enlargeOTHER POULTRY EQUIPMENT · MANURE HANDLING
Manure Removal System

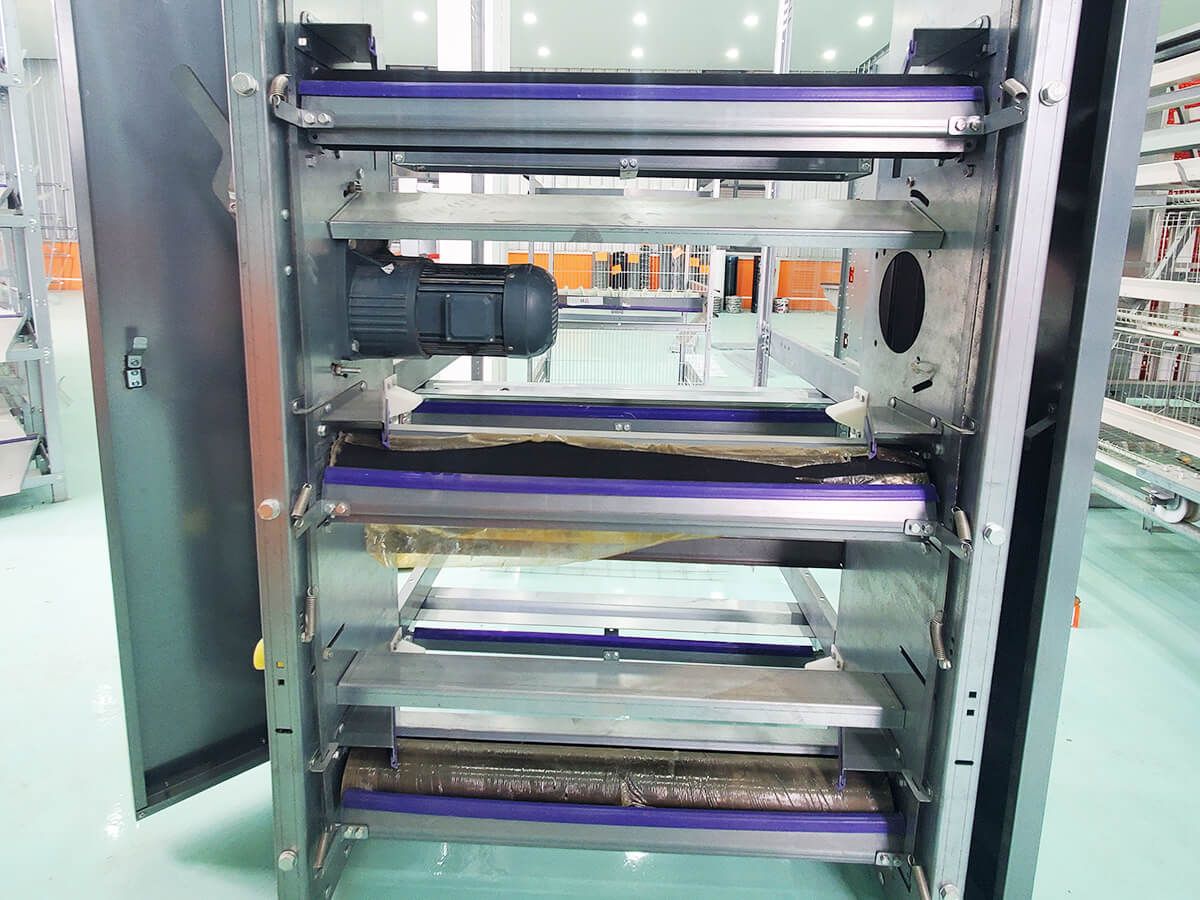

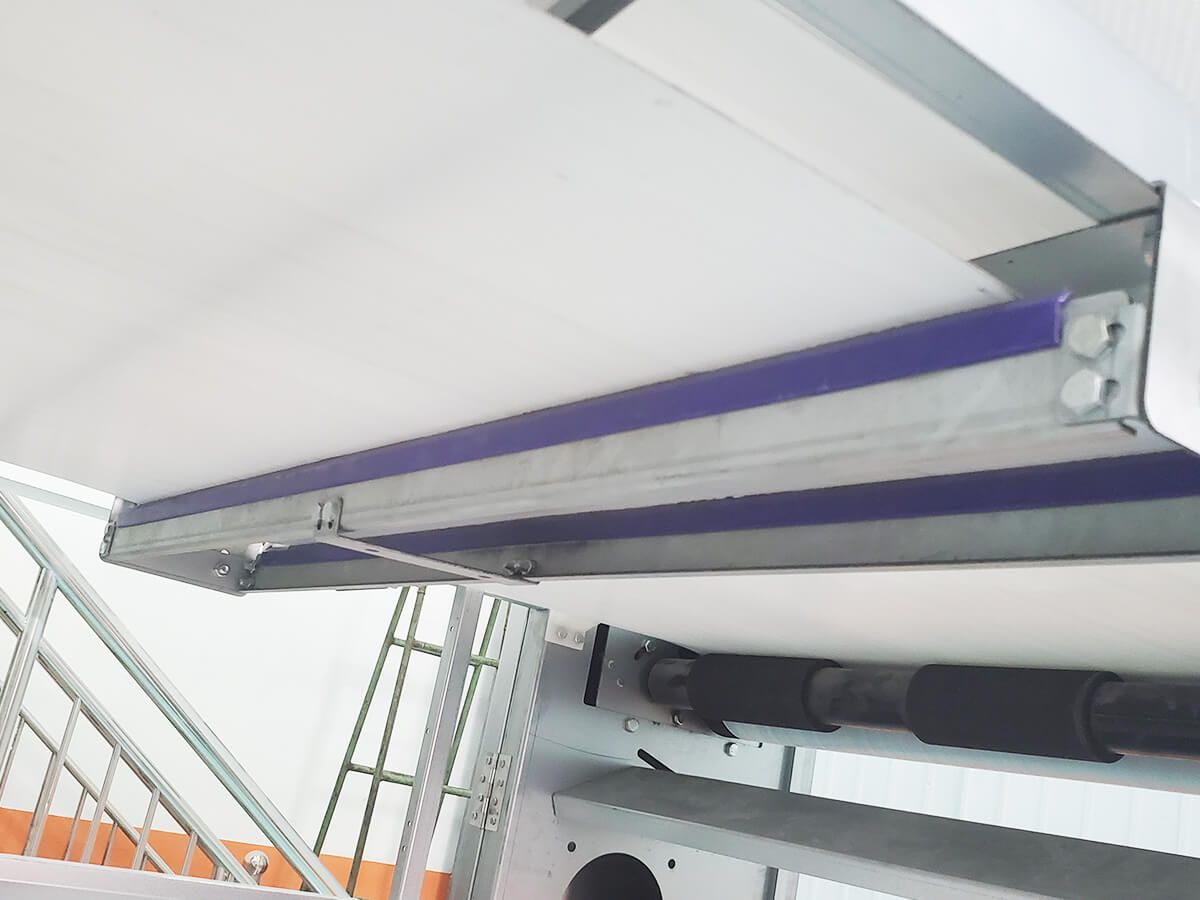

A PP belt runs under every tier and carries manure out on a set schedule — every one to two days — instead of letting it accumulate below the cages. Ammonia stays down, birds breathe easier, and the manure comes out dry enough to bag and sell.
- Belt
- PP, 1.0 mm
- Width
- 1.2–1.6 m
- Cross belt
- Optional
Why farms add a belt system
- Lower ammonia, healthier birds. Manure clears out before it has time to off-gas, cutting respiratory stress and improving feed conversion.
- Saleable by-product. Belt manure comes out dry — bag it and sell to crop farmers instead of paying to haul it away.
- Less daily labour. One motor and a cross conveyor move manure to a single collection point, replacing manual scraping across every row.
- Retrofit friendly. Fits under most existing H-type and D-type cage frames, not only new installations.
Specifications
Technical Parameters
| Item | Specification |
|---|---|
| Belt material | PP (polypropylene), 1.0 mm thickness |
| Belt width | 1.2 – 1.6 m, matched to cage tier width |
| Drive motor | 0.75 – 1.5 kW per row, VFD controlled |
| Clean-out cycle | Every 1 – 2 days, timer or manual trigger |
| Cross conveyor | Optional, feeds a single collection point |
