H Type Layer Cage

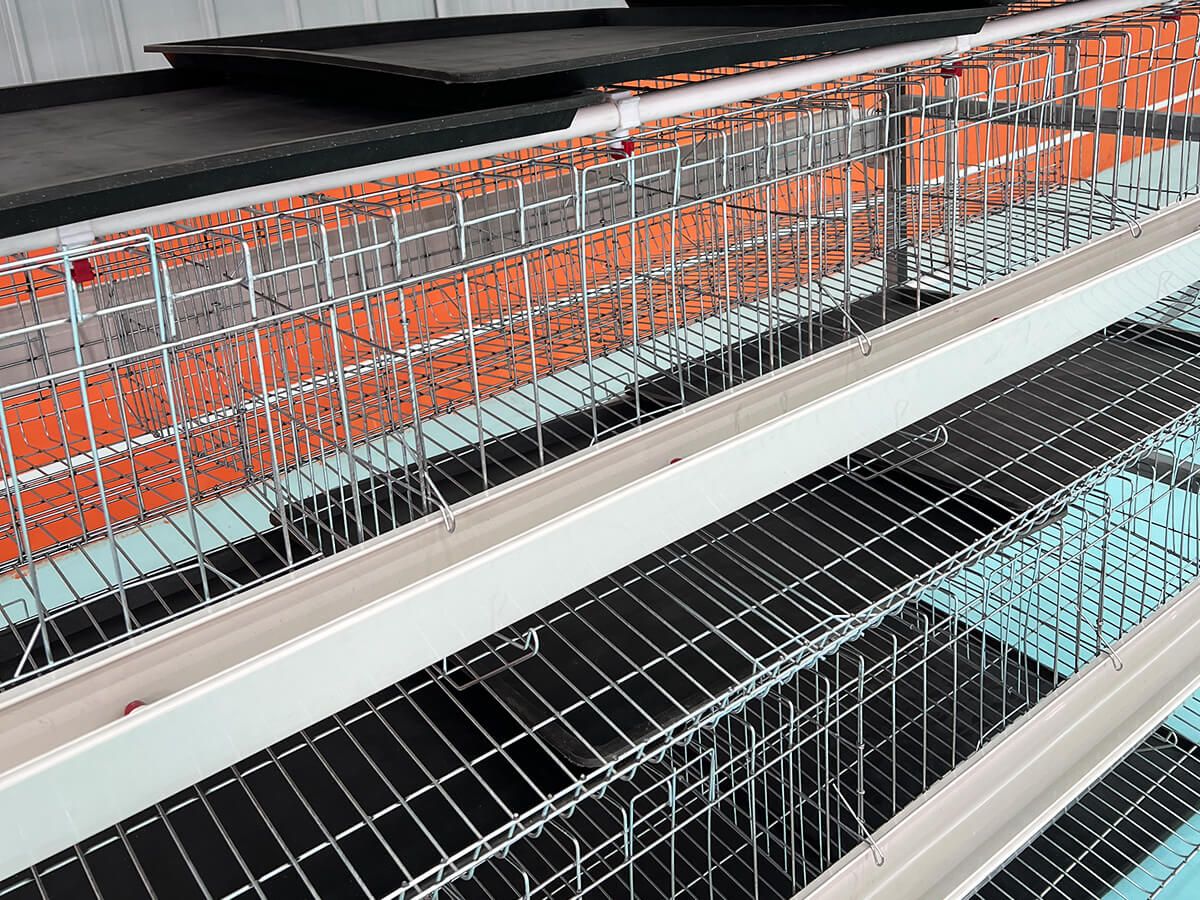

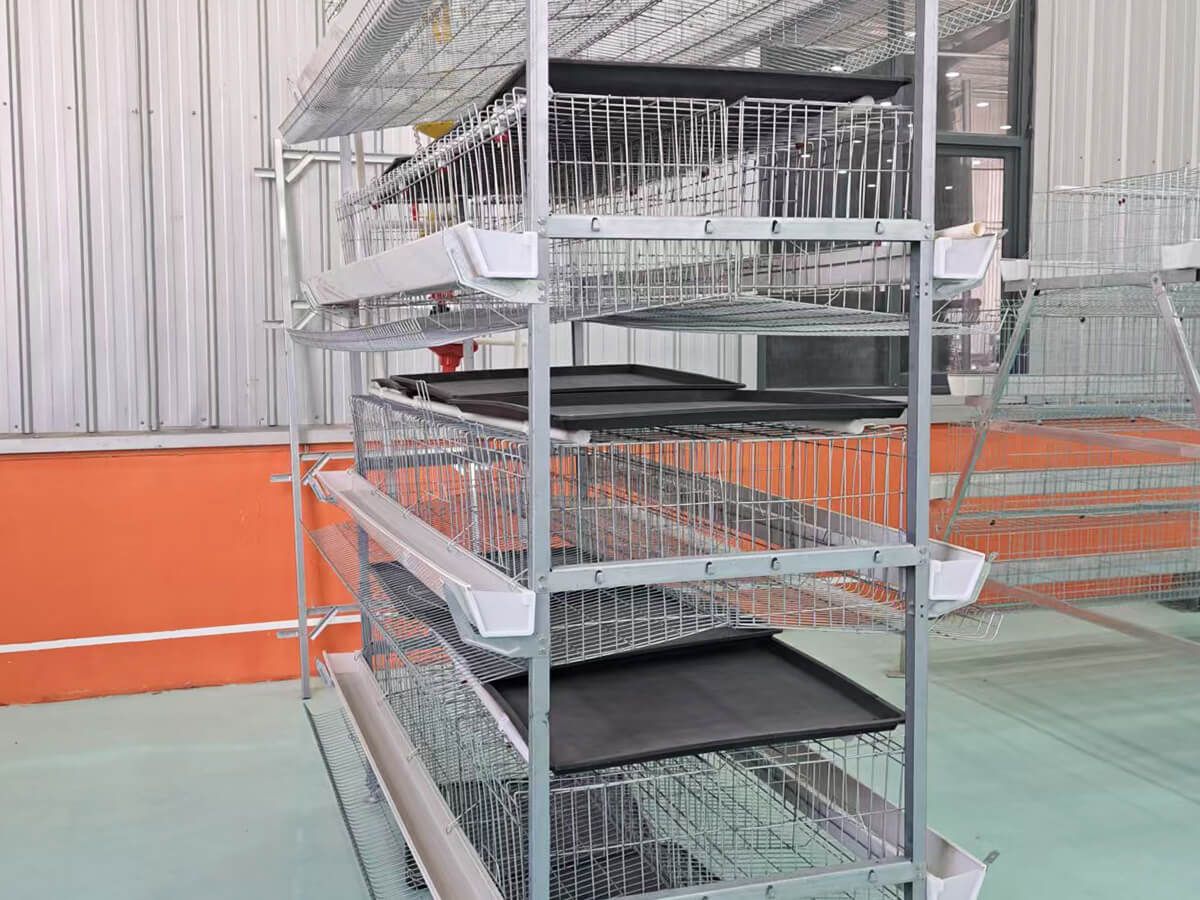

The standard vertically-stacked layer cage. Tiers sit directly above one another with a belt under each, keeping the house footprint small while manure leaves the house dry.
- Tiers
- 3 / 4 / 6 / 8
- Birds per set
- 96–240
- Suits
- 10,000 birds and above
Why farms choose H-type
- Density. Eight tiers put 240 birds where an A-type puts 96, on the same slab.
- Dry manure. Belts carry it out every day or two instead of letting it pile under the cages, which is what drives ammonia and respiratory losses.
- Labour. Feeding, watering, manure and egg collection can all run on motors, cutting the crew a large house needs.
- Saleable by-product. Belt manure comes out dry enough to bag and sell to crop farmers rather than pay to remove.
Specifications
H-Type Technical Parameters
| Model | Tiers | Birds Per Set | Dimensions (L×W×H) | Galvanization Standard | Suits |
|---|---|---|---|---|---|
| SX-H3 | 3 tiers | 96 birds | 1950 × 2100 × 1750 mm | Hot-dip galvanized 275g/m² | 3,000 – 8,000 |
| SX-H4 | 4 tiers | 128 birds | 1950 × 2100 × 2250 mm | Hot-dip galvanized 275g/m² | 8,000 – 25,000 |
| SX-H6 | 6 tiers | 180 birds | 2400 × 2400 × 3100 mm | Hot-dip galvanized 300g/m² | 25,000 – 50,000 |
| SX-H8 | 8 tiers | 240 birds | 2400 × 2400 × 3900 mm | Hot-dip galvanized 300g/m² | 50,000 + |
